CTOs often think private integrations lock their APIs in a VPC. However, misconfigured gateways can still expose sensitive data. Why do leaks still happen?

Private APIs sit inside a VPC, so they feel untouchable. In reality the gateway is the only entry point. However, a single slip lets traffic bypass every network-level guard.

When you expose a private API, the VPC route table still points to the gateway’s ENI. If that ENI accepts any request that satisfies a broad IAM policy, the VPC isolation does nothing.

A recent synthesis of cloud-security research notes that two-thirds of incidents stem from mis-configured APIs. The same pattern repeats for private gateways. Teams assume “private = safe” and ignore the gateway’s own policy surface.

The myth also encourages developers to skip defense-in-depth. They stop encrypting payloads, skip request validation, and rely on the VPC’s invisible wall.

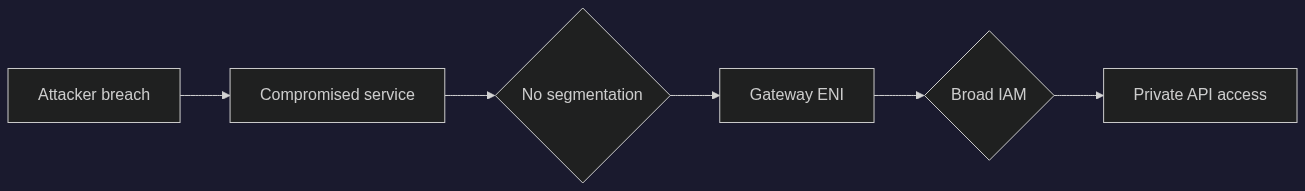

• Single point of entry: The gateway handles TLS termination, auth, and routing for every call.
• Broad IAM bindings: Wildcard actions (`:`) on the gateway role give any VPC resource the ability to invoke it.
• No network segmentation: All subnets share the same endpoint, so a compromised service can reach the gateway directly.

These gaps let an attacker who has breached one microservice pivot to any private API. If isolation alone isn’t enough, what’s actually slipping through the cracks?

The most common leaks arise from three categories: object-level authorization, IAM alignment, and credential hygiene.

A gateway that forwards the whole payload to downstream services without filtering fields. This gives callers more data than they need. For example, a `/patients` endpoint might return SSN, insurance number, and medical history. However, the client only asked for a name.

The gateway should enforce a whitelist of fields based on the caller’s scope.

Developers often attach a role with `apigateway:` to the gateway. Then they rely on the VPC endpoint policy to “lock it down.” If the endpoint policy allows `` on source IPs, any EC2 instance in the VPC can call the API. However, this occurs regardless of its purpose.

A tighter policy restricts the source CIDR to only the subnets that truly need access.

Many teams generate static API keys and embed them in client configs. If the key is a simple UUID, brute-force attacks succeed quickly. Moreover, endpoints like `/admin/healthcheck` often lack authentication, exposing internal state.

• Use short-lived tokens from a secrets manager.
• Apply authentication to every path, even health checks.

When you understand these pitfalls, you can design a gateway that actually blocks leakage, not just pretends to. What concrete controls should replace these weak spots?

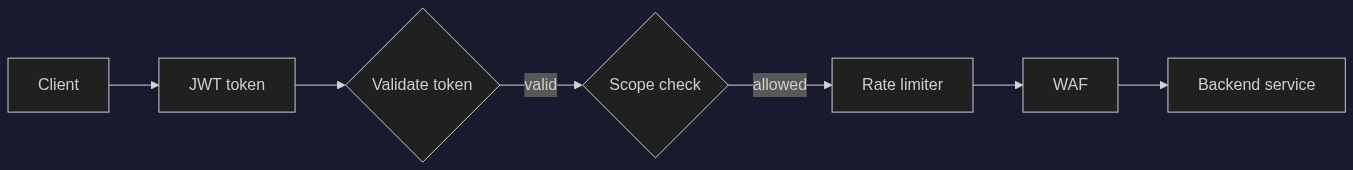

OAuth 2.0 scopes let you bind a client’s permission set to the exact fields it may read. The gateway validates the token before any downstream call.

Rate limiting stops burst traffic that could overwhelm services or be a reconnaissance tool. Dynamic quotas per `client_id` let a trusted partner send more requests than a public app.

Threat detection adds a layer of OWASP-Top-10 pattern matching. Enabling AWS WAF managed rule groups catches SQLi, XSS, and request smuggling before they hit your services.

• OAuth scopes - enforce least-privilege at the field level.
• Dynamic rate limits - protect against abuse without throttling legitimate traffic.
• Managed WAF rules - detect injection, replay, and malformed payloads.

These controls form a defense-in-depth stack that stops data from leaking at the gateway. Which steps turn these ideas into a concrete plan?

1️⃣ Audit IAM policies - Replace wildcards with explicit actions. Add an explicit deny for any principal that does not belong to a trusted subnet.

2️⃣ Enforce OAuth scopes per resource. Define a scope map and validate it in a Lambda authorizer (see code above).

3️⃣ Enable VPC endpoint policies that restrict source IP ranges - Limit access to known subnets only.

4️⃣ Configure rate-limit quotas per client-id and enable burst protection. Use the Terraform snippet above to set steady and burst limits.

5️⃣ Activate threat-detection plugins - Attach AWS WAF managed rule groups or APISIX security module to the gateway.

6️⃣ Rotate API keys automatically - Store keys in AWS Secrets Manager and schedule rotation every 30 days.

7️⃣ Set up continuous compliance scans - Run `terraform validate` and `cfn-nag` in CI pipelines; flag any policy drift.

Typical deployment: Teams that follow this checklist can stand up a hardened gateway in weeks. However, many in-house groups spend 18-24 months on ad-hoc hardening. Production systems that have run for five years with no breach prove the durability of a well-hardened gateway. With the checklist in hand, what happens when you finally close the leak?

Zero data leakage eliminates the legal exposure that drives insurance premiums skyward. Imagine the cost savings when a breach is avoided before it even happens. Customers notice the difference. A platform that can prove end-to-end API security earns trust faster, shortening sales cycles for new integrations. Fast, secure rollouts let product teams ship third-party partners without re-architecting security each time. Could this speed unlock new revenue streams you hadn't considered? The bottom line: a hardened private gateway turns a hidden cost center into a market differentiator. What questions remain about securing your gateway?

Can a private API still be accessed from the public internet?

Only if the gateway’s VPC endpoint or IAM policies are misconfigured. Proper endpoint policies and tightly scoped roles block any public traffic.

What’s the most common cause of data leakage in API gateways?

Broken object-level authorization - allowing a client to retrieve more fields than intended.

How often should I rotate API keys?

Rotate automatically every 30-90 days using a secrets manager and enforce short-lived tokens for clients.

Do I need a separate WAF if I enable threat detection in the gateway?

Gateway-level detection covers many OWASP patterns, but a WAF adds network-layer protection and is recommended for defense-in-depth.

Related reading: - Why Your Business Needs a Security Audit - Before It’s Too Late - HIPAA-Compliant AI Scribes for Indian Hospitals

Explore more about building robust back-ends: custom software development

By treating the gateway as a first-class security boundary rather than an invisible tunnel, you stop data leaks before they start. Learn how to secure your APIs today.
